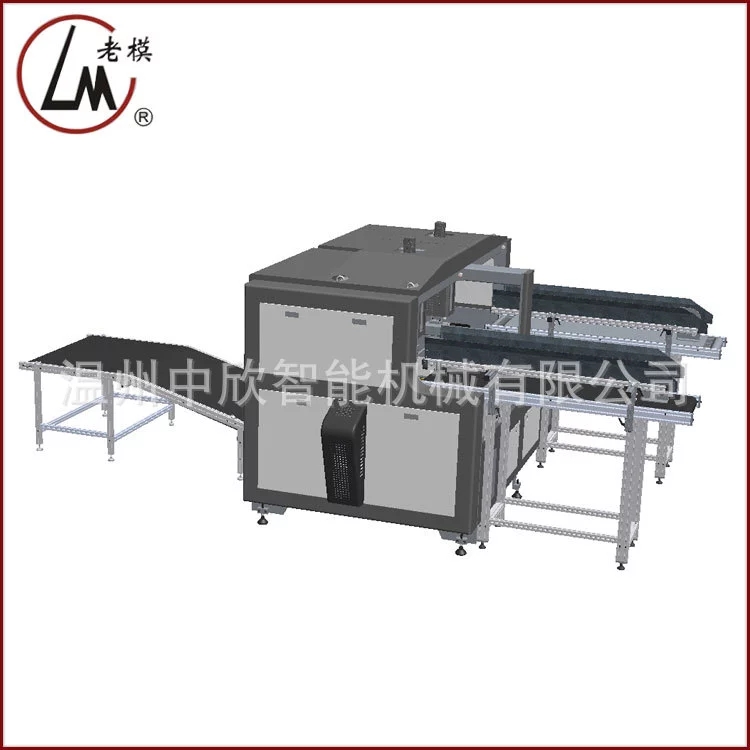

Lm-dcx-360 intelligent full automatic nail box forming machine

一、简述

    LM-DCX-360型全自动钉盒成型机是我厂结合市场需求根据国内外技术潜心研发的高速智能全自动钢丝钉盒立体成型包装设备。广泛应用于工艺品、电子、电器以及五金、标准件天地盖纸盒包装行业。

    智能电脑控制、高精密光电跟踪、触摸屏人机交互；采用加长输送带吸附式不停机送料，主机配备变频联动调速，纸板成型采用智能伺服电机可对不用规格纸盒进行成型钉盒作业，配合后道流水线自动装盒并可增加上盖盖盒设备，实现纸板成型到产品包装一次完成。采用一机同时生产天地盖纸盒的方式节约成本提高效率，是现如今各纸盒包装企业的优选设备。

I. briefly

Lm-dcx-360 full-automatic nail box forming machine is a high-speed intelligent full-automatic steel wire nail box three-dimensional packaging equipment which is developed by our factory according to the market demand and domestic and foreign technology. Widely used in Arts and crafts, electronics, electrical appliances and hardware, standard parts world cover carton packaging industry.

Intelligent computer control, high-precision photoelectric tracking, touch-screen human-computer interaction; long conveyor belt absorption type non-stop feeding, the host is equipped with variable-frequency linkage speed regulation, and the intelligent servo motor can be used for paperboard molding to nail boxes without specifications of paper boxes. With the help of the later assembly line, automatic cartoning can be carried out and the upper cover box equipment can be added to realize the paperboard molding to product packaging once Done. It is the best equipment for carton packing enterprises to adopt the way of one machine to produce the carton of Tiandi cover at the same time to save cost and improve efficiency.

二、主要特点

1、采用一机同时生产天地盖纸盒，也可一次只生产一个纸盒，节约成本提高效率。

2、主机采用变频器联动调速，可根据不同规格纸盒自动调速，稳定省电。

3、加长输送带吸附式送料方式，不停机连续送料，一次放入料板多，稳定性高

4、智能伺服成型钉盒，纸盒钉盒位置可随意调整，实现多规格天地盖钉盒成型。

5、智能电脑编程控制、触摸屏人机交互界面、高精密光电系统，实现纸盒一次成型，自动化程度更高。

6、可选配后道流水线自动装盒并可增加自动盖盒，精度高，实现全过程自动化；

7、自动故障诊断功能，出现故障一目了然，排除更方便快捷。

2、 Main features

1. Using one machine to produce the paper box of Tiandi cover at the same time can also produce only one paper box at a time, saving cost and improving efficiency.

2. The main machine adopts the frequency converter linkage speed regulation, which can automatically adjust the speed according to different specifications of paper box, and can save power stably.

3. Long conveyor belt adsorption feeding mode, continuous feeding without stop, more feeding plates at a time, high stability

4. Intelligent servo molding nail box, the position of the paper box nail box can be adjusted at will, to realize the molding of the multi specification heaven and earth cover nail box.

5. Intelligent computer programming control, touch screen human-computer interaction interface, high-precision photoelectric system, to achieve a carton forming, higher degree of automation.

6. It can be equipped with automatic packing of back pipeline and automatic cover box, which has high precision and realizes the whole process automation;

7. The automatic fault diagnosis function can make the faults clear at a glance and make the troubleshooting more convenient and quick.

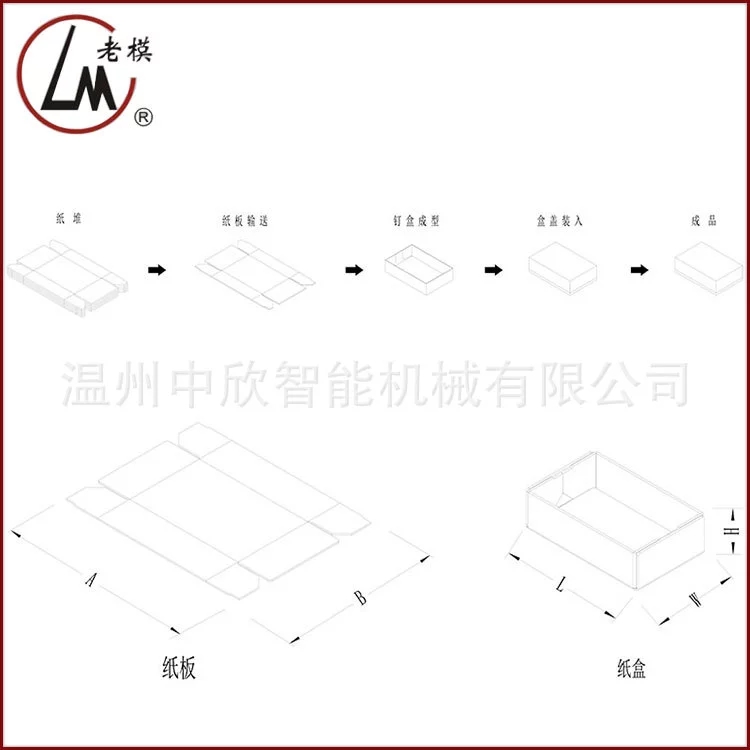

三、工艺流程

3、 Process flow

四、技术参数

4、 Technical parameters
