LM-TG-40 Rigid box corner pasting machine(single angle) |

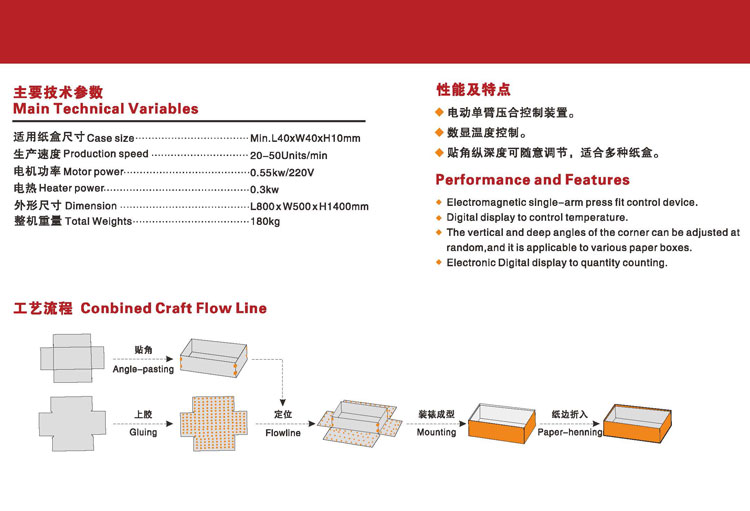

LM-TG-40 paper box corner pasting machine (single corner) is a decorative box corner pasting and forming equipment designed in combination with the characteristics of the domestic industry. It has a small footprint, convenient operation, reasonable structure, fast speed, and is a specialized machinery suitable for corner pasting of paper box linings in large, medium, and small printing and packaging factories. 1. Electric single arm compression control device. 2. Digital temperature control. 3. The vertical depth of the corner can be adjusted freely, suitable for various paper boxes. 4. Electronic digital display counting. Main technical parameters: Applicable paper width Min.L40 × W40 × H10mm Production speed 20-50 Units/Min Horsepower 1/2HP 220V Electric heating 240KW Machine size L800 × W500 × H1400mm Mechanical weight 180kg LM-TG-40型纸盒贴角机(单角),采用国外先进技术,结合国内行业特点而设计的饰盒贴角成型设备,具有占地面积小,操作方便,结构合理,速度快,适应大、中、小型印刷包装厂纸盒内衬贴角的专用机械。 1、电动单臂压合控制装置。 2、数显温度控制。 3、贴角纵深度可随意调节,适合多种纸盒。 4、电子数显计数。 主要技术参数: 适用纸张宽度 Min.L40×W40×H10mm 生产速度 20-50Units/Min 马力 1/2HP 220V 电热 240KW 机器尺寸 L800×W500×H1400mm 机械重量 180kg |
