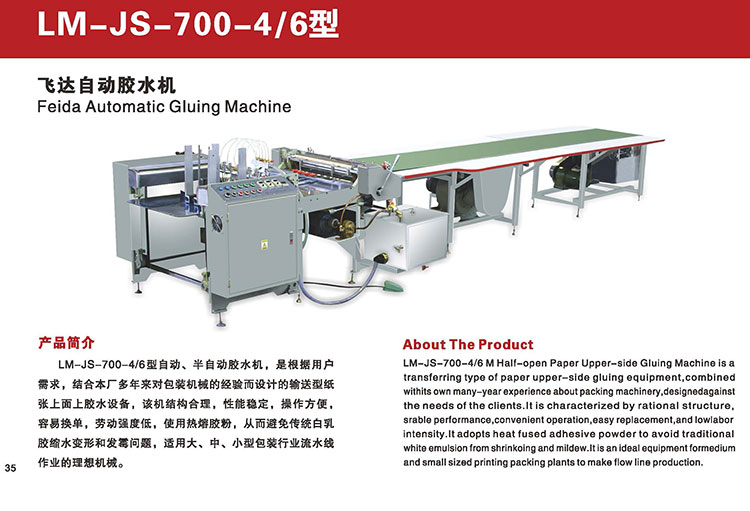

LM-JS-700-4 automatic glue machine |

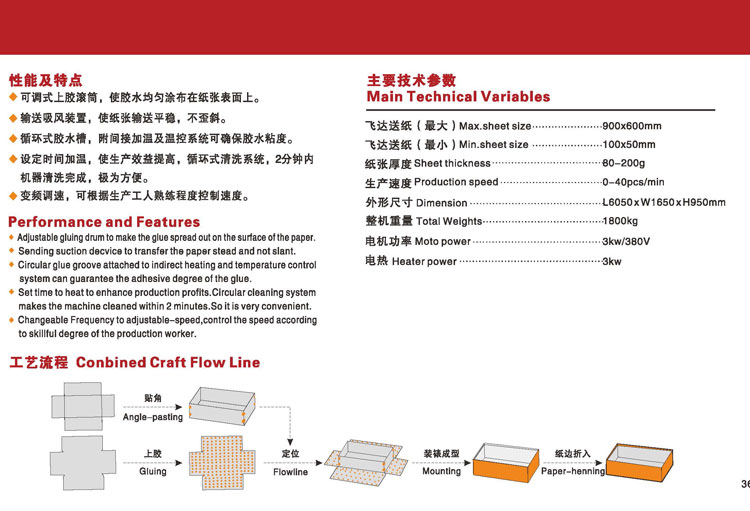

LM-JS-700-4型自动、半自动胶水机,是根据用户需求,结合本厂多年来对包装机械的经验而设计的输送型纸张上面上胶水设备,该机结构合理,性能稳定,操作方便,容易换单,劳动强度低,使用热熔胶粉,从而避免传统白乳胶缩水变形和发霉问题,适用大、中、小型包装行业流水线作业的理想机械。 可调式上胶滚筒,使胶水均匀涂布在纸张表面上。 输送吸风装置,使纸张输送平稳,不歪斜。 循环式胶水槽,附间接加温及温控系统可确保胶水粘度。 设定时间加温、使生产效益提高,循环式清洁系统,2分钟内机器清洗完成,极为方便。 变频调速,可根据生产工人熟练程度控制速度。 主要技术参数: 飞达送纸(最大)900×600mm 飞达送纸(最小)100×50mm 纸张厚度80-200gsm 生产速度0-40pcs/min 机械尺寸L6050×W1650×H950mm 机械重量1800kg 电机功率3hp/380v 电热3kw The LM-JS-700-4 automatic and semi-automatic glue machine is a conveyor type paper gluing equipment designed based on user needs and our years of experience in packaging machinery. The machine has a reasonable structure, stable performance, easy operation, easy to change orders, low labor intensity, and uses hot melt glue powder to avoid traditional white latex shrinkage deformation and mold problems. It is an ideal machine for assembly line operations in large, medium, and small packaging industries. Adjustable glue roller to evenly apply glue on the surface of the paper. The conveying suction device ensures smooth and non skewed paper conveying. A circulating glue water tank with an indirect heating and temperature control system can ensure the viscosity of the glue. Set the time for heating, improve production efficiency, and adopt a circulating cleaning system. The machine cleaning is completed within 2 minutes, which is extremely convenient. Variable frequency speed regulation, which can control the speed according to the proficiency of production workers. Main technical parameters: Feida paper feeding (maximum) 900 × 600mm Feida paper feeding (minimum) 100 × 50mm Paper thickness 80-200gsm Production speed 0-40pcs/min Mechanical dimension L6050 × W1650 × H950mm Mechanical weight 1800kg Motor power 3hp/380v Electric heating 3kw |
